Earth’s Mantle (Composition, Sections)

The Earth’s mantle is a vast and enigmatic layer that lies between the crust and the core, comprising a significant portion of our planet’s mass and volume. It plays a crucial role in the dynamic processes that have shaped Earth’s geology and continues to influence its surface and atmosphere.

Composition of the Earth’s Mantle

The mantle is primarily composed of solid rock, but its constituents are more complex than a single homogeneous substance. The dominant elements found in the mantle include silicon, oxygen, magnesium, and iron, with trace amounts of other elements such as aluminum, calcium, and sodium. These elements form various mineral compounds, giving the mantle its distinctive properties.

• Peridotite: The Predominant Rock

Peridotite is the most abundant rock type in the Earth’s mantle, making up approximately 70-75% of its volume. It is an ultramafic rock, rich in magnesium and iron, and low in silica content. The mineral olivine is a characteristic component of peridotite and imparts a greenish color to the rock, giving it its name. Peridotite is dense and forms the solid base of the tectonic plates.

• Other Minerals Present

Aside from peridotite, the mantle contains several other minerals like pyroxene, garnet, and spinel. These minerals are formed under high-pressure and high-temperature conditions, which are typical of the mantle’s depths. The presence of these minerals and their distribution offers valuable insights into the mantle’s properties and behavior.

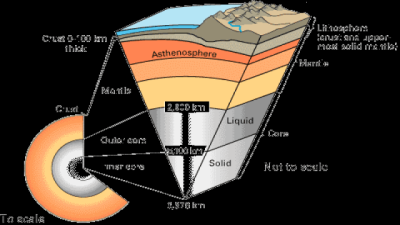

Sections of the Earth’s Mantle

The mantle can be divided into different sections based on its physical and chemical properties. These sections are characterized by variations in temperature, pressure, and density, each playing a distinctive role in the Earth’s dynamic processes.

• Lithosphere: The Rigid Outer Layer

The lithosphere is the uppermost layer of the mantle and is also part of the Earth’s crust. It includes both the continental and oceanic crust and extends to a depth of about 100 kilometers (62 miles) beneath the surface. This layer is relatively rigid and is broken into tectonic plates that float on the semi-fluid asthenosphere beneath them. The movement of these plates leads to various geological phenomena like earthquakes, volcanic activity, and mountain formation.

• Asthenosphere: The Semi-Fluid Layer

The asthenosphere lies just below the lithosphere and extends to a depth of about 700 kilometers (435 miles). It is a semi-fluid, ductile layer where rocks exhibit plasticity and can flow slowly over geological timescales. The asthenosphere plays a crucial role in plate tectonics by allowing the movement of the rigid lithospheric plates. Its ability to flow facilitates mantle convection, which drives the movement of tectonic plates and influences volcanic activity.

• Transition Zone: Bridging the Gap

The transition zone is located beneath the asthenosphere, starting at around 700 kilometers (435 miles) depth and extending to approximately 1,800 kilometers (1,118 miles). It is a region of significant chemical and mineralogical changes due to the high pressure and temperature conditions. Olivine undergoes transformations into new minerals like wadsleyite and ringwoodite, which have distinct properties compared to their counterparts in the upper mantle.

• Lower Mantle: High-Pressure Domain

The lower mantle extends from the base of the transition zone to a depth of about 2,900 kilometers (1,800 miles). It is characterized by extremely high pressure and temperatures, leading to the formation of dense minerals like perovskite and magnesiowüstite. These minerals have different crystal structures and properties compared to those in the upper mantle. The lower mantle plays a crucial role in mantle convection, as heat from the core is transferred through this region towards the surface.

• D” Layer: The Mysterious Boundary

The boundary between the lower mantle and the outer core is known as the D” (D double prime) layer. It is a region of intense scientific interest, as it is thought to play a significant role in the generation of Earth’s magnetic field and other geophysical phenomena. The properties of the D” layer are still not entirely understood, and ongoing research seeks to unravel its mysteries.

The following table summarizes some key data about the Earth’s mantle layers:

The Earth’s mantle is a dynamic and multifaceted layer, with its composition and sections holding vital clues to the planet’s geological evolution. Understanding the mantle’s complexities is crucial for comprehending plate tectonics, volcanic activity, and the Earth’s magnetic field.
