How OLTs Power Modern PON Fiber Optic Networks

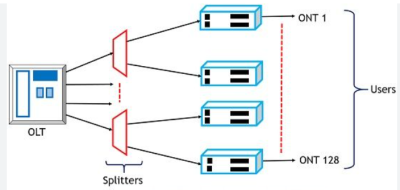

An optical line terminal (OLT) is a key component of passive optical networks (PONs). It is usually located in the service provider’s central office and connects the optical fiber backbone to the customer premises equipment. An OLT acts as the endpoint hardware device of a PON.

Understanding OLT

• An OLT connects PON optical fibers to individual subscribers through a split ratio of typically 1:32 or 1:64
• It converts analog optical signals into digital electronic signals and vice versa
• Key functions include multiplexing, demultiplexing, encryption and traffic management
• OLT systems feature redundancy mechanisms to ensure high availability
• Usually compliant with protocols like XGS-PON and NG-PON2

Key Functions and Capabilities

• Multiplexing and demultiplexing:  Aggregate traffic from multiple optical network units (ONUs) on a single fiber strand
• Service provisioning: Dynamically assign network resources per subscriber
• Quality of Service: Enable tiered application-specific service levels
• Encryption: Add a security layer with encryption mechanisms
• Monitoring and diagnostics: Real-time reporting stats for easy troubleshooting
• Auto-discovery: Detect newly connected ONUs and self-configure connections
• Protection switching: Failover to redundant ports during network disruption

Architectural Overview

The key components of an OLT include:

• PON port(s): Interface between OLT optoelectronics and external fiber connections
• Uplink ports: High capacity ports to connect OLT to metro/core network switches
• Switch fabric: Forward data packets between PON ports and uplink ports
• Control plane: Central processing unit and memory to run management software
• Timing source: Clock distribution for time synchronization across the PON
• Chassis: Physical hardware enclosure for holding OLT components

Standards and Protocols

There are several standards and protocols related to OLT systems, networks and technologies:

• IEEE 802.3ah: Standard for Ethernet-based Ethernet PON (EPON)
• ITU G.984: Set of PON standards referred to as Gigabit PON (GPON)
• XGS-PON: Newer PON standard for 10 Gbps symmetrical connectivity
• NG-PON2: Next generation PON supporting up to 80 Gbps capacity
• SFP: Small form-factor pluggable transceiver connects OLT to fiber network
• OMCI: ONU management and control interface used for managing ONUs
• TR-069: CPE WAN management protocol provides communication between customer-premises equipment

Key OLT Vendors

Some leading OLT hardware and software vendors include:

• Nokia
• Huawei
• ZTE
• Calix
• Adtran
• Ericsson
• NEC
• Cisco Systems
• Fiberhome Technologies
• DASAN Zhone Solutions

OLT System Comparative Parameters

Examples

• The Calix 844GE OLT supports 64 service points with XGS-PON connectivity over a maximum distance of 20 km from the central office. It provides 10 Gbps symmetrical speeds by aggregating multiple subscribers over GPON and XGS PON technologies.
• The Nokia 7360 ISAM FX series is a redundant, carrier-grade OLT platform that supports up to 384 PON ports per chassis with capacity expansion through additional line cards. It complies with XGS-PON and NG-PON2 capable of up to 80 Gbps PON connectivity.

Benefits

• Cost savings : PON architecture consolidated multiple network elements to central office location, reducing operating costs
• Scalability : OLTs can expand capacity by simply adding line cards and changing split ratios
• Energy efficiency : Passive optical infrastructure between OLT and ONUs consumes much less power
• Enhanced security : OLT supports mechanisms like encryption, MAC filtering and access control
• High reliability : Provides uninterrupted services with redundant power supplies and ring protection.
