Seismic waves, the vibrations that propagate through the Earth’s interior following an earthquake or explosion, are invaluable tools in understanding the planet’s internal structure. By analyzing the behavior of these waves as they travel through the Earth, scientists have been able to gain insights into its composition, density, and properties.
Types of Seismic Waves
There are two main types of seismic waves: body waves and surface waves.
Body Waves
Body waves travel through the Earth’s interior, passing through its core, mantle, and crust. There are two primary types of body waves:
- P-waves (Primary waves) P-waves are compressional waves that propagate by compressing and expanding the material through which they pass. They can travel through solids, liquids, and gases. In the Earth’s interior, P-waves travel at an average speed of 5 to 8 kilometers per second in the crust, 8 to 13 kilometers per second in the mantle, and around 10 to 14 kilometers per second in the outer core. The core-mantle boundary marks a significant decrease in P-wave velocity due to the sudden change in density.
- S-waves (Secondary waves) S-waves are shear waves that move material from side to side perpendicular to their direction of propagation. Unlike P-waves, S-waves cannot travel through liquids, which allows scientists to infer that the Earth’s outer core is liquid as S-waves are absent there. S-waves travel at a velocity slightly lower than P-waves and exhibit slower speeds in the Earth’s mantle compared to the crust.
Surface Waves
Surface waves, as the name suggests, travel along the Earth’s surface and are responsible for the damage caused during earthquakes. There are two main types of surface waves:
- Love Waves Love waves move with a horizontal, snake-like motion, and they are the fastest surface waves. They only travel through the Earth’s crust and are responsible for the majority of earthquake-related damages.
- Rayleigh Waves Rayleigh waves have a rolling motion and travel both along the surface and into the Earth. They are responsible for the characteristic rolling motion observed during earthquakes.
Propagation of Seismic Waves

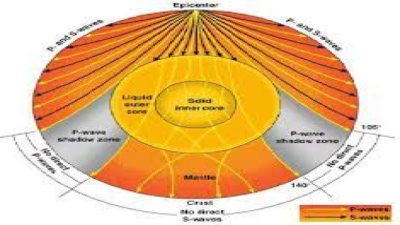

Seismic waves follow paths that are determined by the varying properties of the Earth’s interior. As waves encounter boundaries between different materials, they may reflect, refract, or diffract, providing valuable information about the Earth’s subsurface layers. By studying the travel times and paths of seismic waves recorded by seismometers around the world, scientists can create models of the Earth’s interior.
Interpreting Seismic Data
Seismologists use seismic data to create models of the Earth’s interior through a technique called seismic tomography. Similar to medical CT scans, seismic tomography involves analyzing seismic wave travel times and amplitudes to create three-dimensional images of the Earth’s interior. By comparing observed seismic data with predicted wave behavior using mathematical models, scientists can determine the composition and properties of the Earth’s layers.
The following key table illustrates detection of Earth’s interiors using Seismic Waves.
| Earth’s Layer | Depth (km) | P-wave Velocity (km/s) | S-wave Velocity (km/s) | Composition |
| Crust | 0-40 | 5-8 | 2-4 | Mostly solid, with varying rock types |
| Mantle | 40-2,900 | 8-13 | 4-7 | Solid, composed of silicate minerals |
| Outer Core | 2,900-5,100 | 10-14 | Absent | Molten iron and nickel |
| Inner Core | 5,100-6,371 | 11-13 | 6-8 | Solid, composed of iron and nickel |
- Example: Earthquake in Chile
Let’s consider a hypothetical earthquake that occurred in Chile. Seismometers around the world recorded seismic waves propagating from the earthquake’s epicenter. P-waves and S-waves arrived at various seismometer stations at different times, depending on the distance from the earthquake source and the layers they encountered.
By analyzing the time taken for P-waves and S-waves to arrive and their relative amplitudes, seismologists can determine the earthquake’s epicenter and magnitude. Furthermore, they can study how the waves were affected as they passed through the Earth’s interior. If certain seismic stations did not receive S-waves, it would suggest the presence of a liquid layer (the outer core) beneath those stations.
Seismic waves are invaluable tools in deciphering Earth’s interior. Through the study of these waves and their behavior as they traverse the planet’s layers, scientists have been able to create detailed models of the Earth’s composition, density, and structure.
