The Shadow Zone of Earthquake

Earthquakes, the powerful geophysical events that shake the ground beneath us, are a result of tectonic plate movements. When an earthquake occurs, it generates seismic waves that propagate through the Earth’s interior, carrying invaluable information about the planet’s structure. However, scientists have long observed an intriguing phenomenon known as the “shadow zone,” an area on the Earth’s surface where certain seismic waves fail to reach, leaving a gap in our understanding of seismic activity.

Understanding Seismic Waves

Before delving into the shadow zone, it’s essential to understand the basics of seismic waves. Earthquake-generated seismic waves come in two primary types:

• P-Waves (Primary Waves)

P-waves are compressional waves, also known as primary waves, and are the fastest seismic waves. They travel through solids, liquids, and gases, moving like a slinky, compressing and expanding in the direction of wave propagation.

• S-Waves (Secondary Waves)

S-waves are shear waves, also known as secondary waves, that travel more slowly than P-waves. Unlike P-waves, S-waves cannot propagate through liquids and only move through solids, shaking particles perpendicular to their direction of travel.

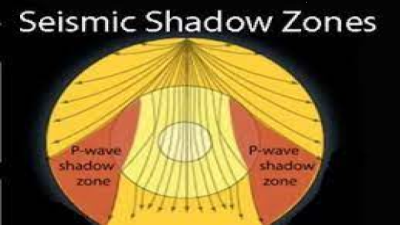

The Shadow Zone

The shadow zone is an area on the Earth’s surface where seismic waves fail to be detected or significantly weaken. This phenomenon was first discovered by seismologist Richard Dixon Oldham in 1906, who observed that certain seismic waves didn’t arrive at seismometers located at distant locations from the earthquake’s epicenter.

• The P-Wave Shadow Zone

The primary wave shadow zone extends from 103 to 142 degrees from the earthquake’s epicenter. Within this zone, P-waves are completely absent. This occurs because P-waves can’t travel through the liquid outer core of the Earth, which lies between 2,890 and 5,150 kilometers beneath the Earth’s surface.

• The S-Wave Shadow Zone

The secondary wave shadow zone extends from 103 to 180 degrees from the earthquake’s epicenter. In this region, S-waves are entirely absent. The reason behind this is that S-waves cannot propagate through both the liquid outer core and the partially molten layer above the outer core, called the asthenosphere.

Unraveling the Earth’s Interior

The existence of the shadow zone has played a crucial role in helping scientists understand the Earth’s interior structure. By analyzing seismic data collected from different regions, researchers have been able to deduce the Earth’s core composition and properties.

• Inference of Earth’s Core

Seismic waves that pass through the Earth’s interior are refracted and reflected, and their paths are bent due to changes in the Earth’s composition and density. By carefully studying the pattern of seismic wave arrivals and their absence in the shadow zone, scientists have inferred the presence of a solid inner core and a liquid outer core.

• Mapping the Earth’s Layers

The presence of the shadow zone for both P-waves and S-waves has allowed seismologists to map the Earth’s internal layers. The data collected from seismic events worldwide has been instrumental in creating models that showcase the Earth’s crust, mantle, outer core, and inner core.

Real-World Implications

Understanding the shadow zone has significant implications for various fields of science and beyond.

• Earthquake Monitoring and Hazard Assessment

Studying the shadow zone helps improve earthquake monitoring and hazard assessment. By understanding how seismic waves travel through the Earth’s interior, scientists can better predict and prepare for earthquakes, potentially saving lives and reducing damage.

• Earth’s Geological Evolution

The shadow zone’s study has provided valuable insights into the Earth’s geological evolution over billions of years. It has shed light on plate tectonics, continental drift, and the Earth’s thermal history.

Key Data Table

The following table represents seismic data with respect to important parameters associated with shadow zone of earthquake.

The shadow zone remains a fascinating aspect of earthquake seismology that continues to intrigue scientists and geophysicists. By unraveling the mystery of seismic waves’ elusive path, researchers have gained a deeper understanding of the Earth’s interior and its geological evolution.
