Types of Ocean Relief (Detailed)

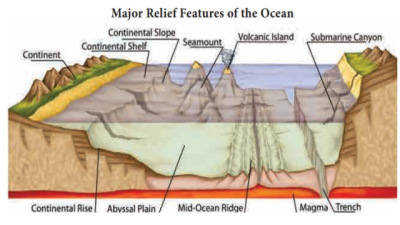

The ocean is a vast and mysterious expanse covering more than 70% of the Earth’s surface. Beneath its shimmering surface lies a diverse array of underwater landscapes known as ocean relief or bathymetry. These formations, shaped by geological processes, currents, and tectonic activity, are essential for understanding the ocean’s topography and marine ecosystems.

Continental Shelf

The continental shelf is the gently sloping extension of a continent beneath the ocean’s surface. This underwater platform extends from the shoreline to the shelf break, where the seabed drops off into the deeper ocean floor. The width of continental shelves can vary widely, with some extending hundreds of kilometers from the coast. These areas are relatively shallow, with depths typically ranging from 0 to 200 meters.

• Example: The North Sea has an extensive continental shelf, making it one of the most productive fishing grounds in the world.

Continental Slope

Beyond the continental shelf lies the continental slope, a steeper descent into deeper ocean waters. This region marks the transition between the continental shelf and the ocean basin. The depth of the continental slope can range from 200 to 3000 meters, depending on the region.

• Example: The eastern coast of the United States features a well-known continental slope along the edge of the Atlantic Ocean.

Continental Rise

The continental rise is the gently sloping region located at the base of the continental slope. It consists of accumulated sediment and debris that has been transported from the shallower areas above. The continental rise leads to the abyssal plains of the deep ocean.

• Example: The Amazon Submarine Fan, formed by sediment deposition from the Amazon River, is an excellent example of a continental rise.

Abyssal Plains

The abyssal plains are vast, flat expanses of the ocean floor found in the deep ocean basins. These areas have depths ranging from 3000 to 6000 meters, and their surfaces are covered with fine-grained sediment. Abyssal plains are often punctuated by underwater volcanoes known as seamounts.

• Example: The Sargasso Sea, located in the North Atlantic Ocean, features extensive abyssal plains.

Trenches

Trenches are the deepest parts of the ocean and form where tectonic plates converge. These long, narrow depressions can reach staggering depths, with some exceeding 11,000 meters. The Mariana Trench in the western Pacific Ocean is the deepest known trench, with a depth of about 11,034 meters.

• Example: The Peru-Chile Trench, located off the western coast of South America, is another well-known trench.

Seamounts

Seamounts are underwater mountains that rise significantly above the surrounding ocean floor but do not reach the surface. These volcanic features are found throughout the ocean and can provide critical habitats for various marine species.

• Example: The Hawaiian Islands were formed by a series of seamounts over a volcanic hotspot.

Mid-Ocean Ridges

Mid-ocean ridges are immense underwater mountain ranges that extend for thousands of kilometers across the ocean floor. These ridges are created by tectonic plate spreading and are characterized by volcanic activity and hydrothermal vents.

• Example: The Mid-Atlantic Ridge is one of the longest and most well-studied mid-ocean ridges.

Below is a table summarizing the key data related to the types of ocean relief:

The diverse types of ocean relief play a crucial role in shaping marine ecosystems and influencing oceanographic processes. From the expansive continental shelves to the mysterious abyssal plains and awe-inspiring trenches, each underwater landscape offers a unique and captivating story of Earth’s geological history.
